Painemittari

Badotherm Pressure Gauge 0-16 bar 1/4 NPT Male 67mm

SKU: 6015

Varastossa

Käytetty
Hankittu työympäristöstä

Hinta pyynnöstä

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Tärkeää: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Takuuajat olosuhteittain

Uusi 12 kuukaudet

Kunnostettu 3 kuukaudet

Käytetty DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

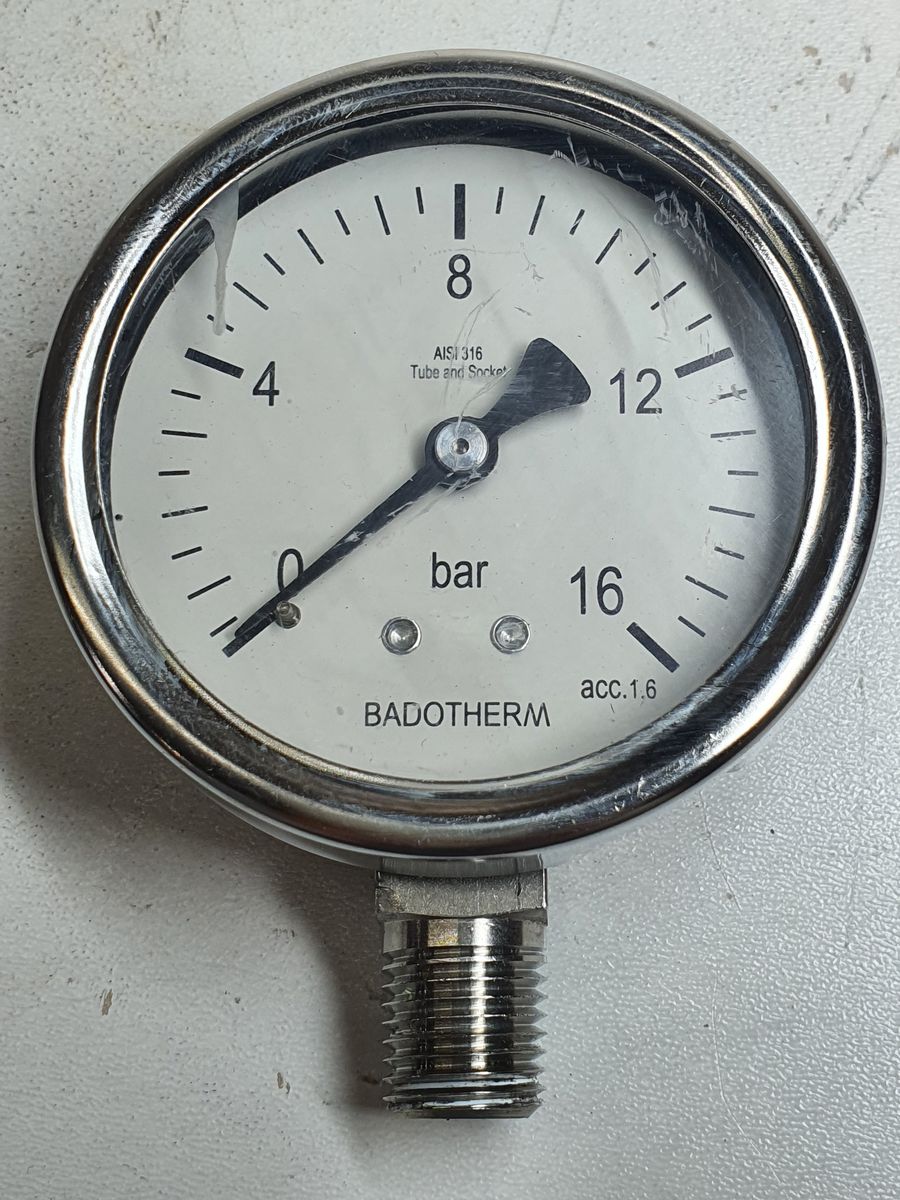

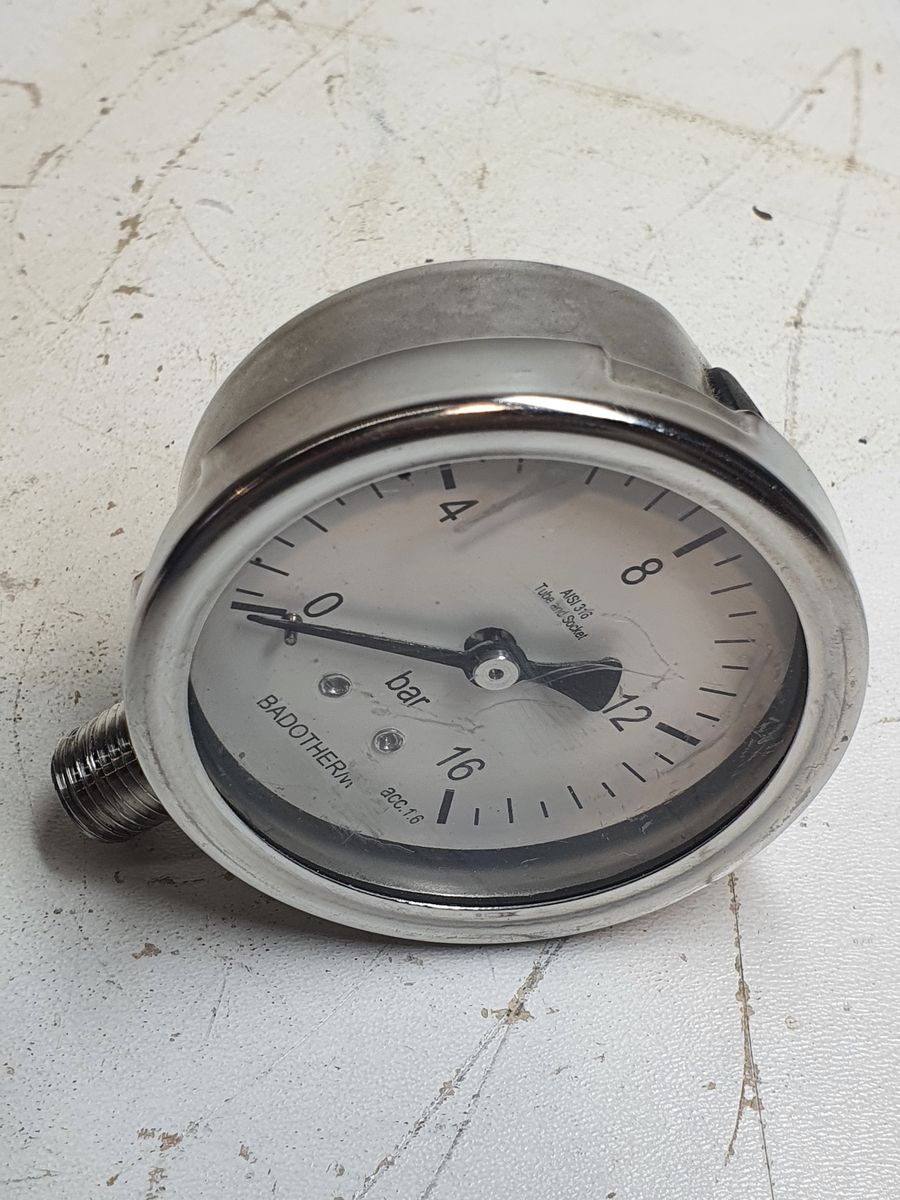

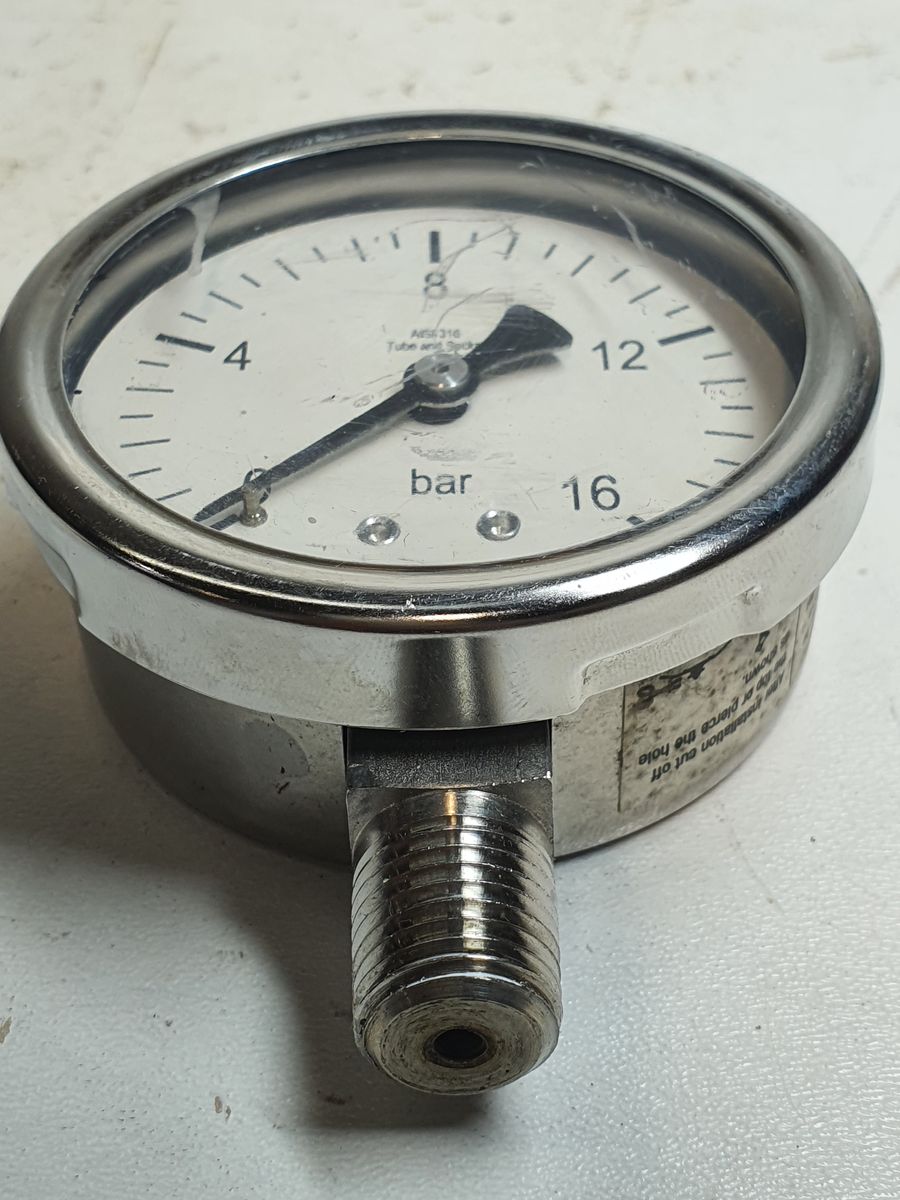

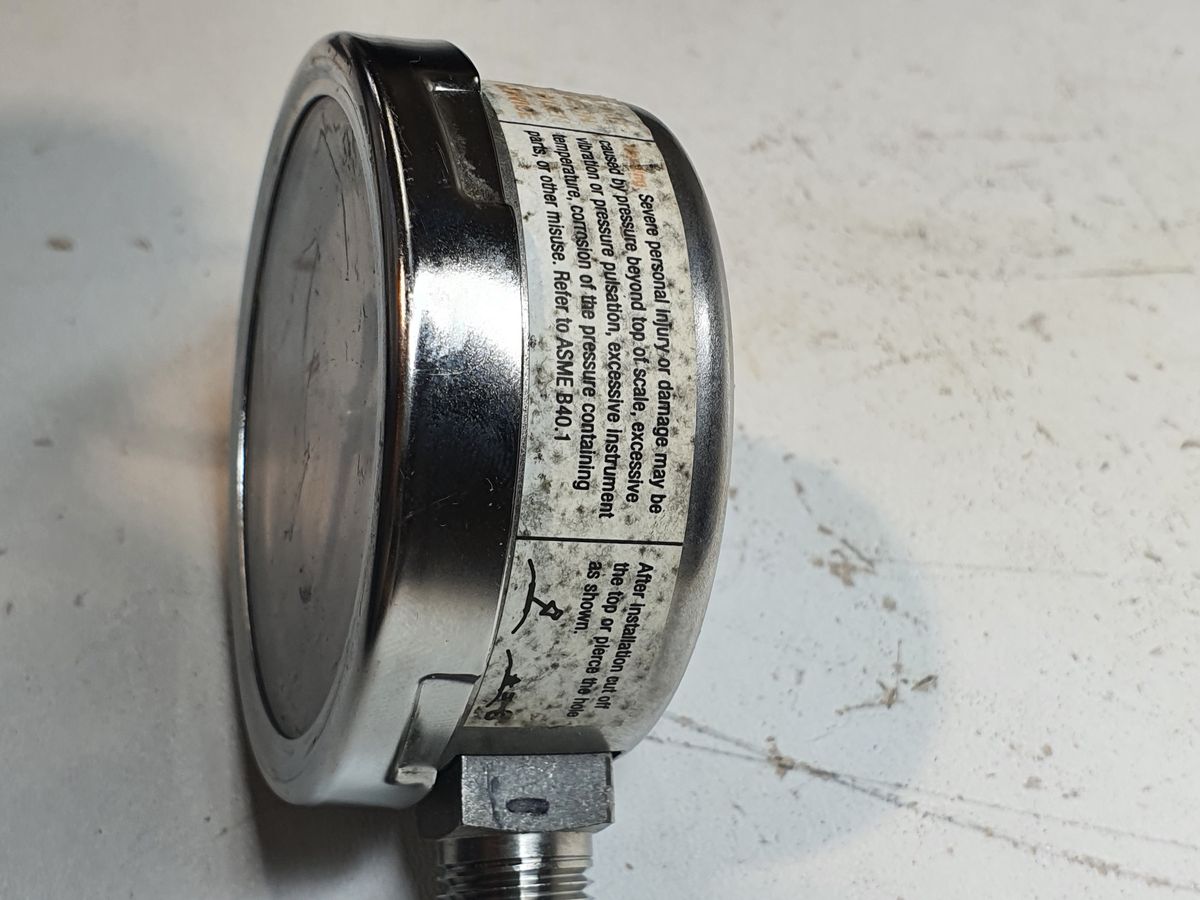

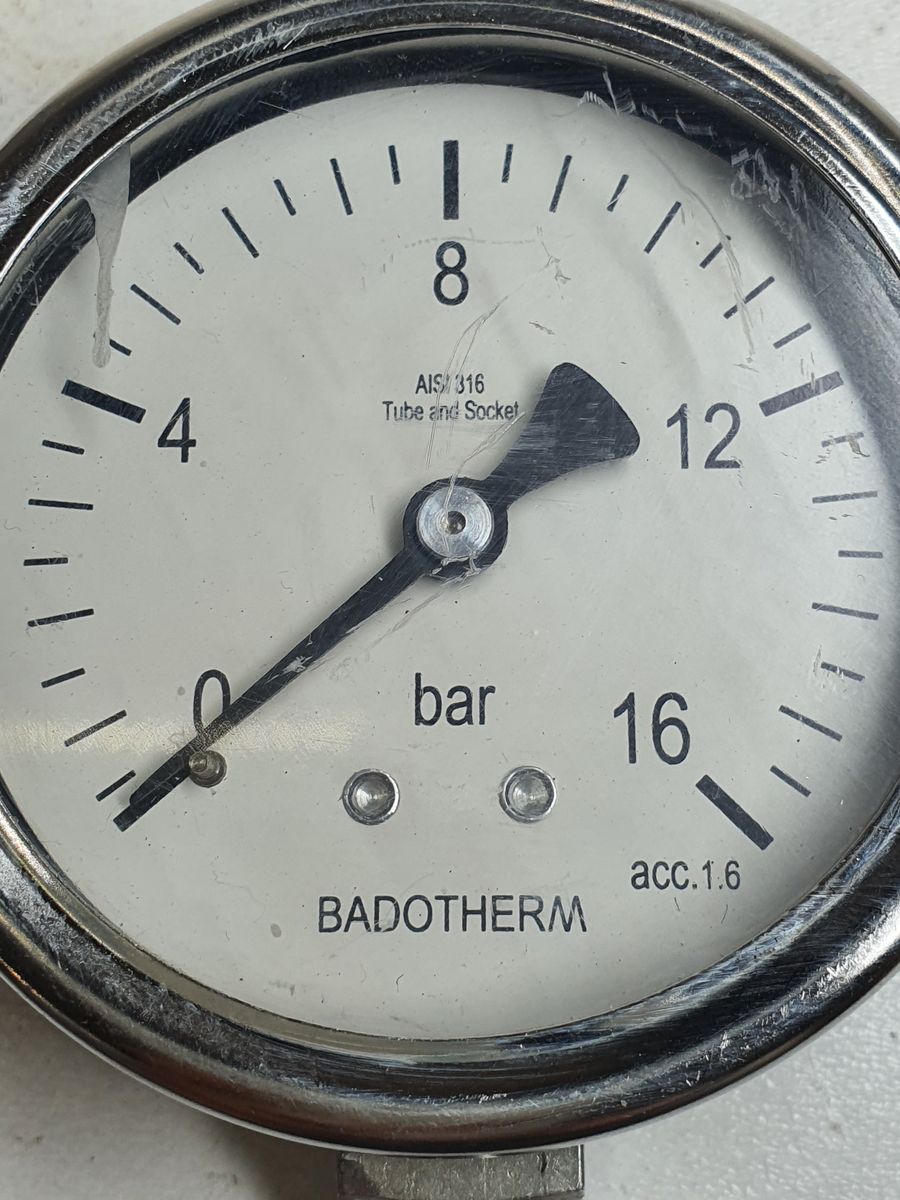

Badotherm Pressure Gauge 0-16 bar 1/4 NPT Male 67mm

Parameter	Specification
Manufacturer	BADOTHERM
Instrument Type	Pressure Gauge
Scale	Single scale
Pressure Range	0 – 16 bar
Size	67mm
Accuracy Class	Class 1.6 (acc. 1.6)
Measuring Element	Bourdon tube
Wetted Parts Material	AISI 316 stainless steel
Socket Material	AISI 316 stainless steel
Case Material	Stainless steel
Dial Color	White
Pointer	Black
Connection Type	Bottom (radial)
Connection Thread	Likely 1/4 NPT male
Mounting	Direct mounting
Safety Design	Standard industrial gauge (no visible safety pattern marking)
Application	Industrial pressure measurement (liquids & gases compatible with SS 316)
Current Indicated Pressure	~0.5–1 bar (very low pressure)
