Pneumaattiset toimilaitteet

Swagelok SC00015-3U F04-N-DS-11 AZNX MS-A15-3 DIN / SS-43GS4-A15C3-12639

SKU: 4004

Varastossa

Kunnostettu
Kunnostettu

Ilman ALV:tä: €330,00 (2 saatavilla)

Sis. alv: €399,30

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Tärkeää: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Takuuajat olosuhteittain

Uusi 12 kuukaudet

Kunnostettu DOA

Käytetty DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

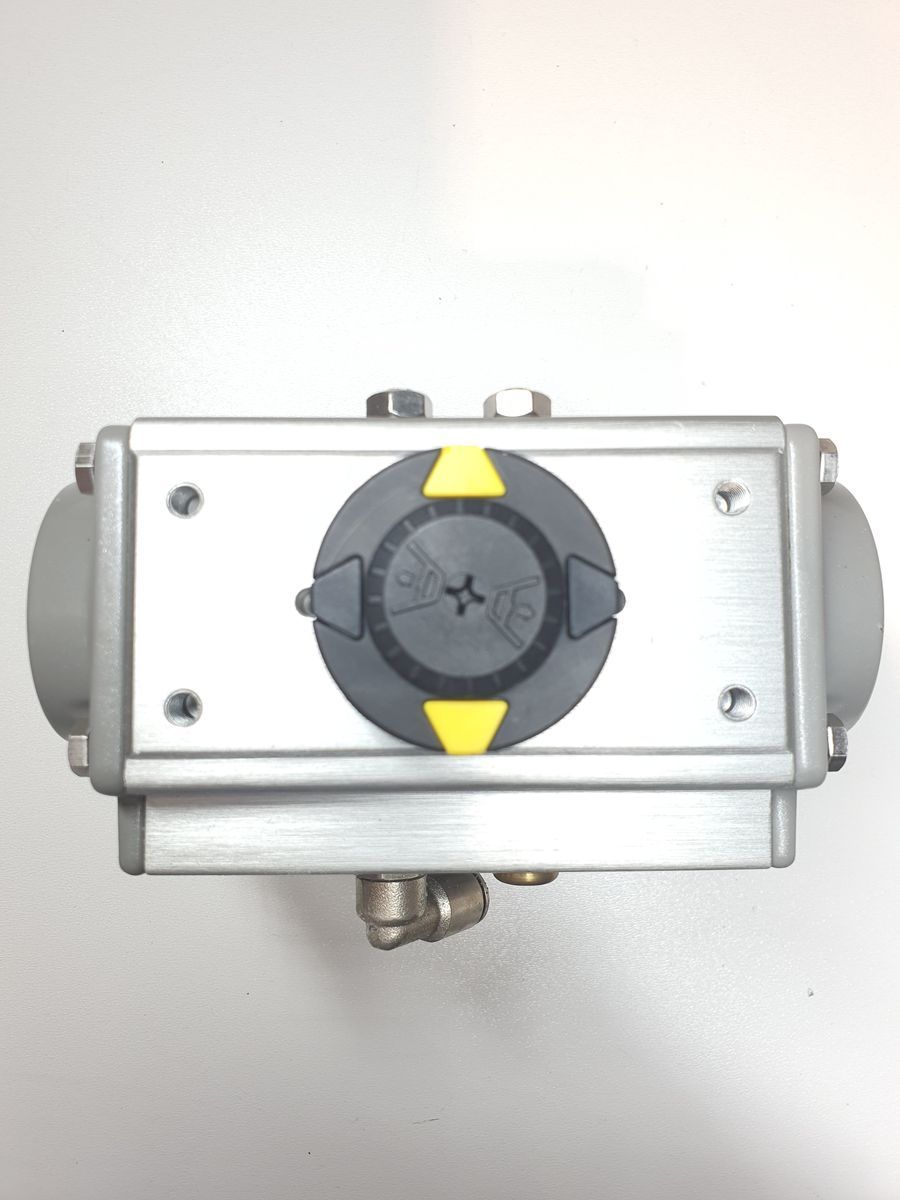

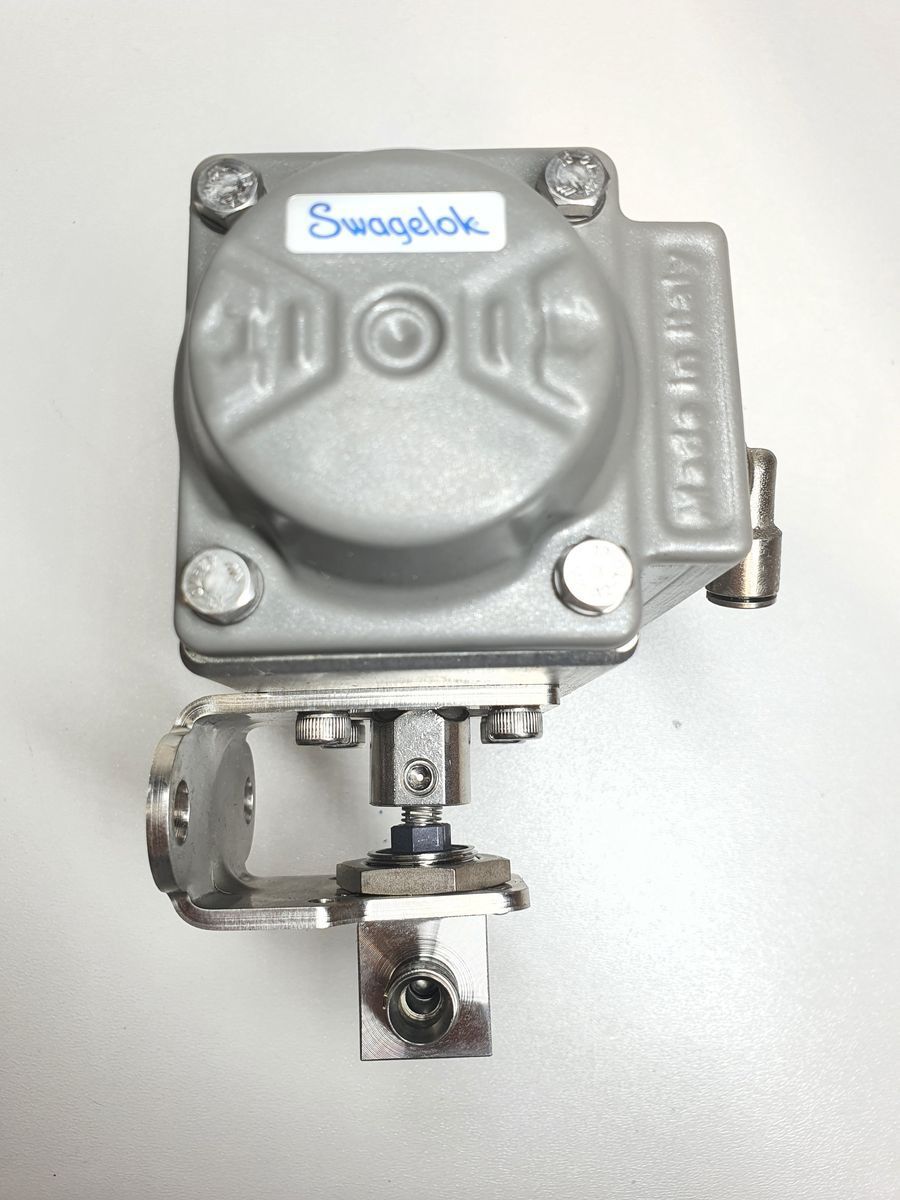

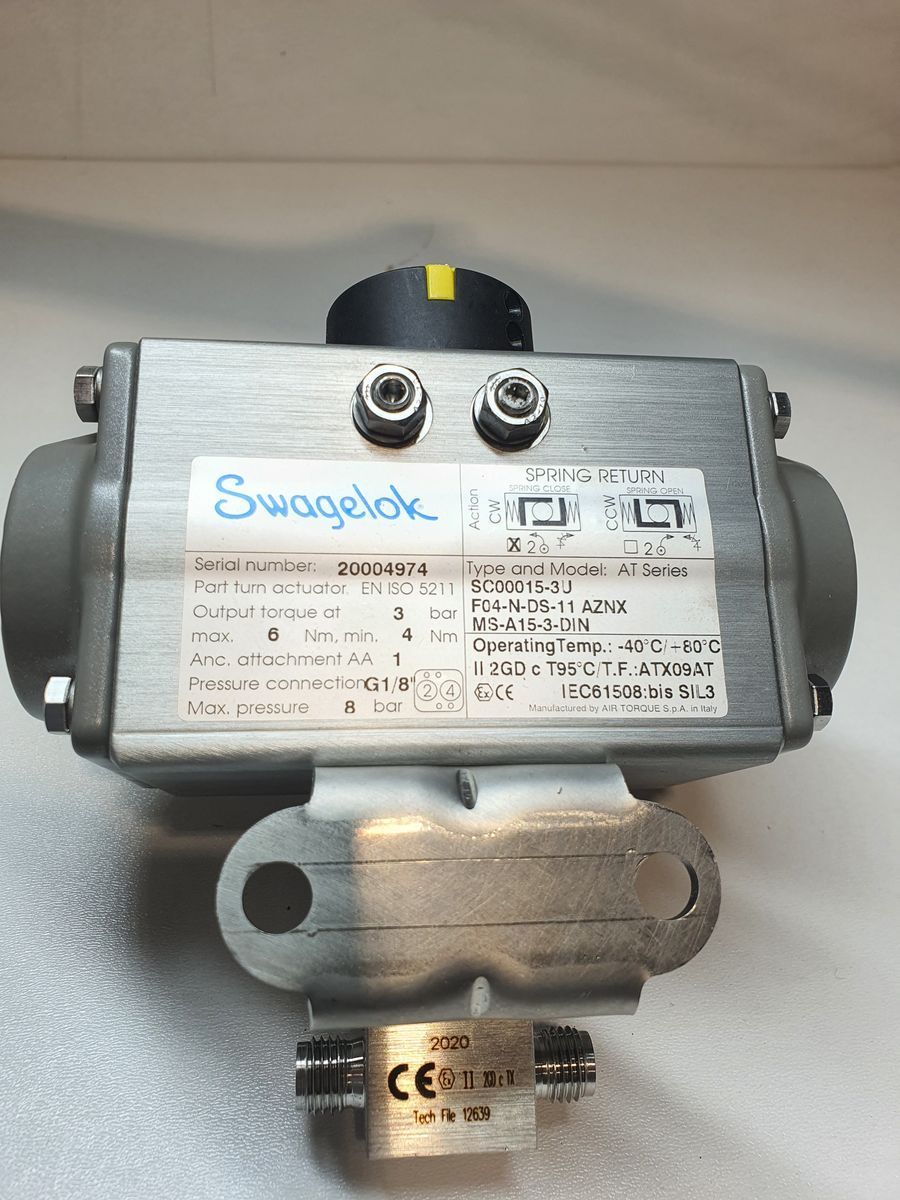

Swagelok SC00015-3U Pneumatic Actuator

Category	Parameter
Manufacturer	Air Torque S.p.A. (Italy)
Brand / Series	Swagelok AT Series
Type	Pneumatic part-turn actuator
Operation	Spring return (spring close / spring open)
Rotation Angle	90° (quarter turn)
Output Torque	Minimum: 4 NmMaximum: 6 Nm
Maximum Operating Pressure	8 bar
Air Connection	G 1/8"
Mounting Standard	EN ISO 5211
Ambient Temperature Range	−40 °C to +80 °C
ATEX Classification	II 2GD c T95°C / T.F. ATX09 AT
Safety Integrity Level	IEC 61508 – SIL 3

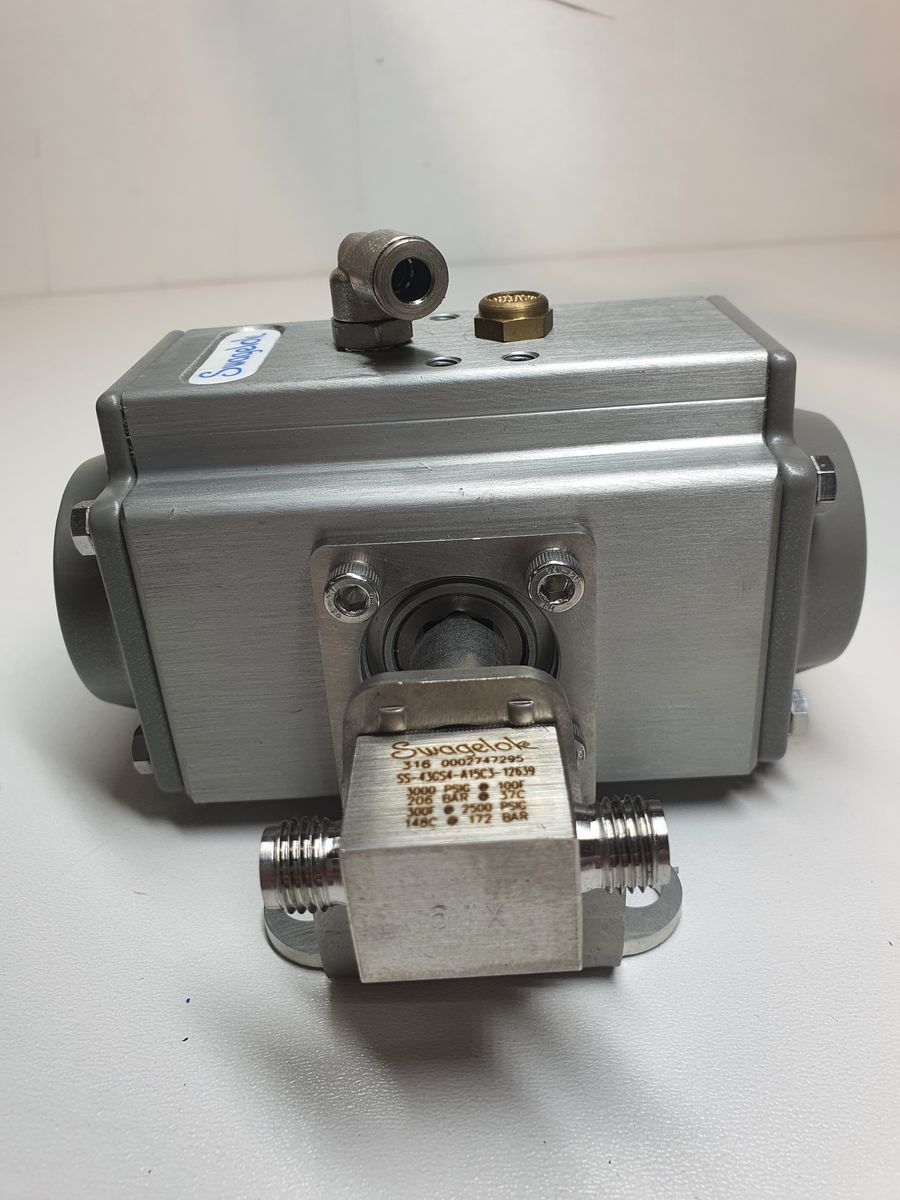

Swagelok MS-A15-3-DIN Valve:

Parameter	Specification
Model / Part Number	SS-43GS4-A15C3-12639
Serial Number	0002747295
Material	316 Stainless Steel
Pressure Ratings	3000 PSIG @ 100 °F (206 bar @ 37 °C)2500 PSIG @ 300 °F (172 bar @ 148 °C)
Connections	Threaded inlet/outlet (visible)
Type	High-pressure needle valve, suitable for precision flow control
