Painemittari

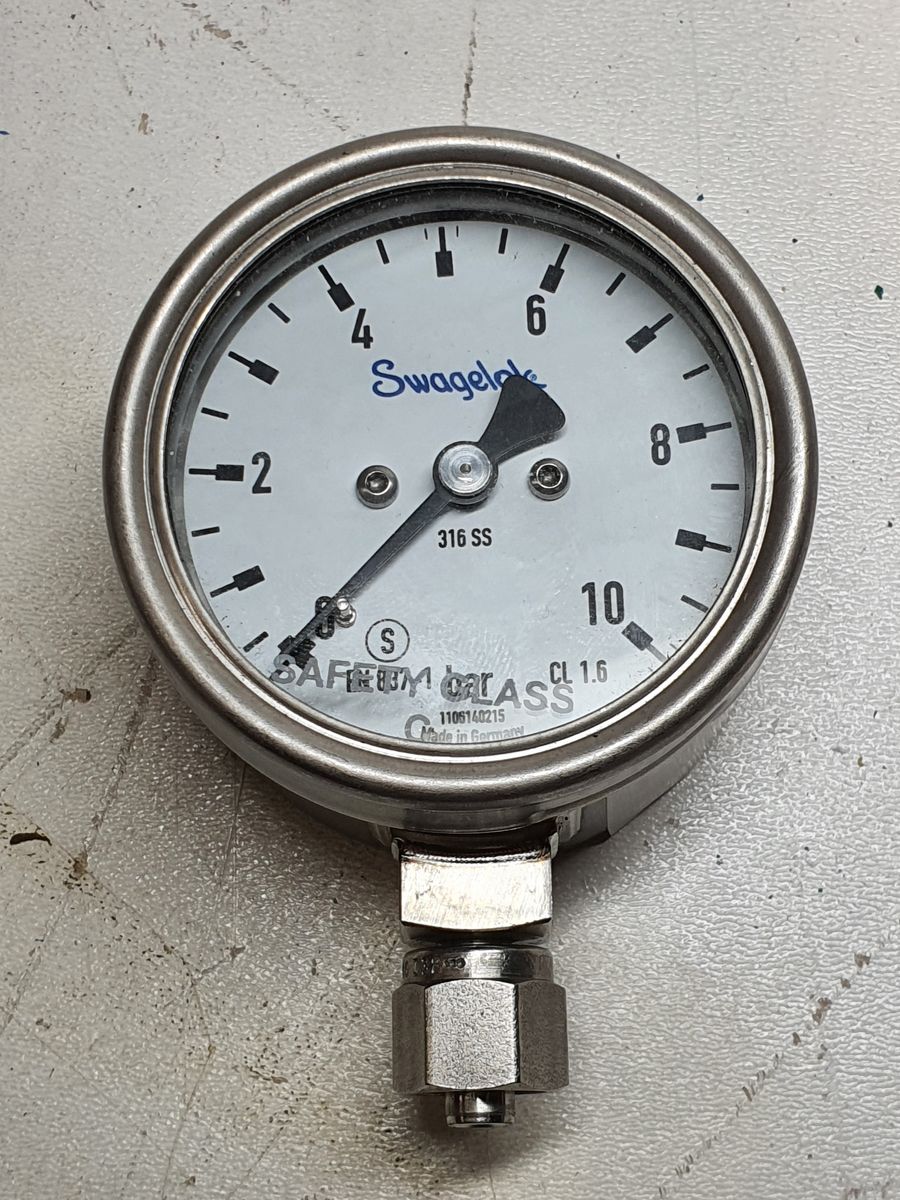

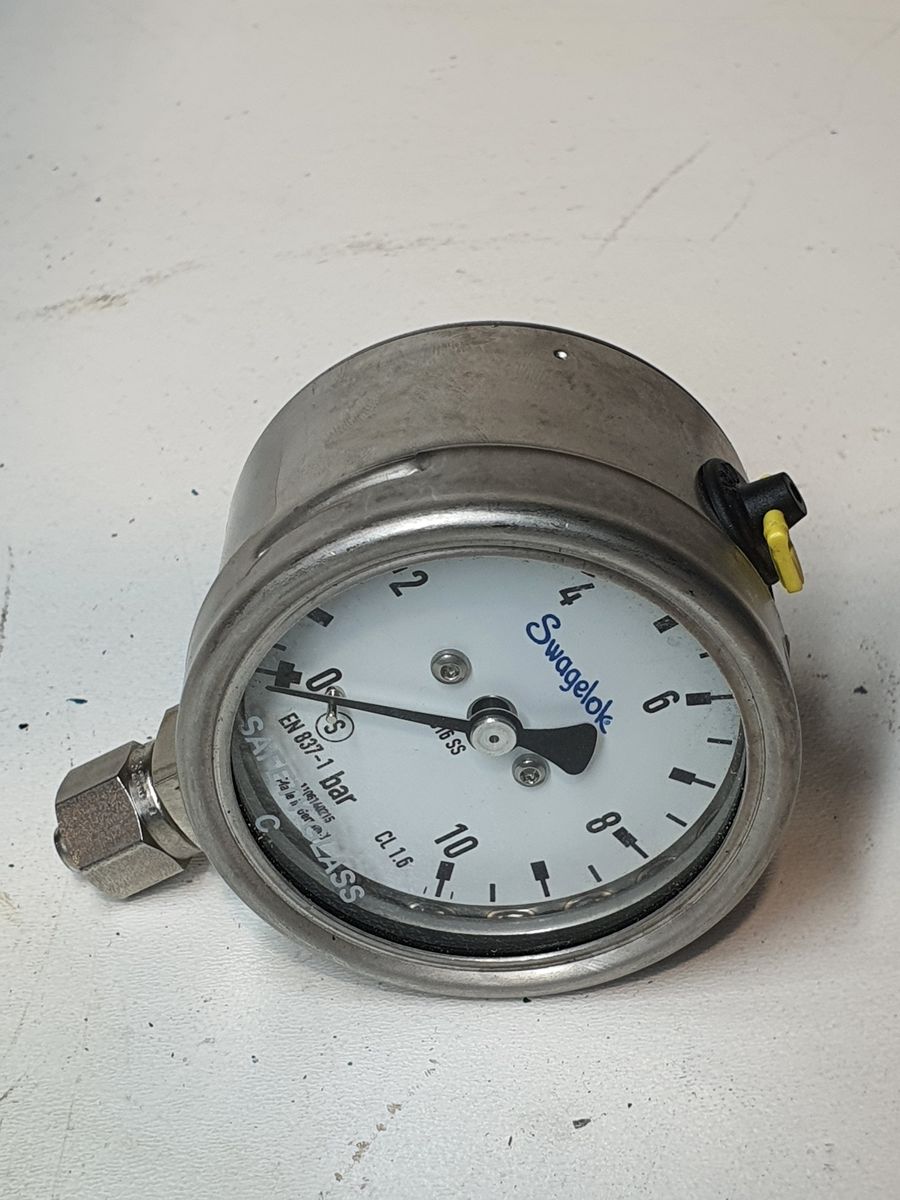

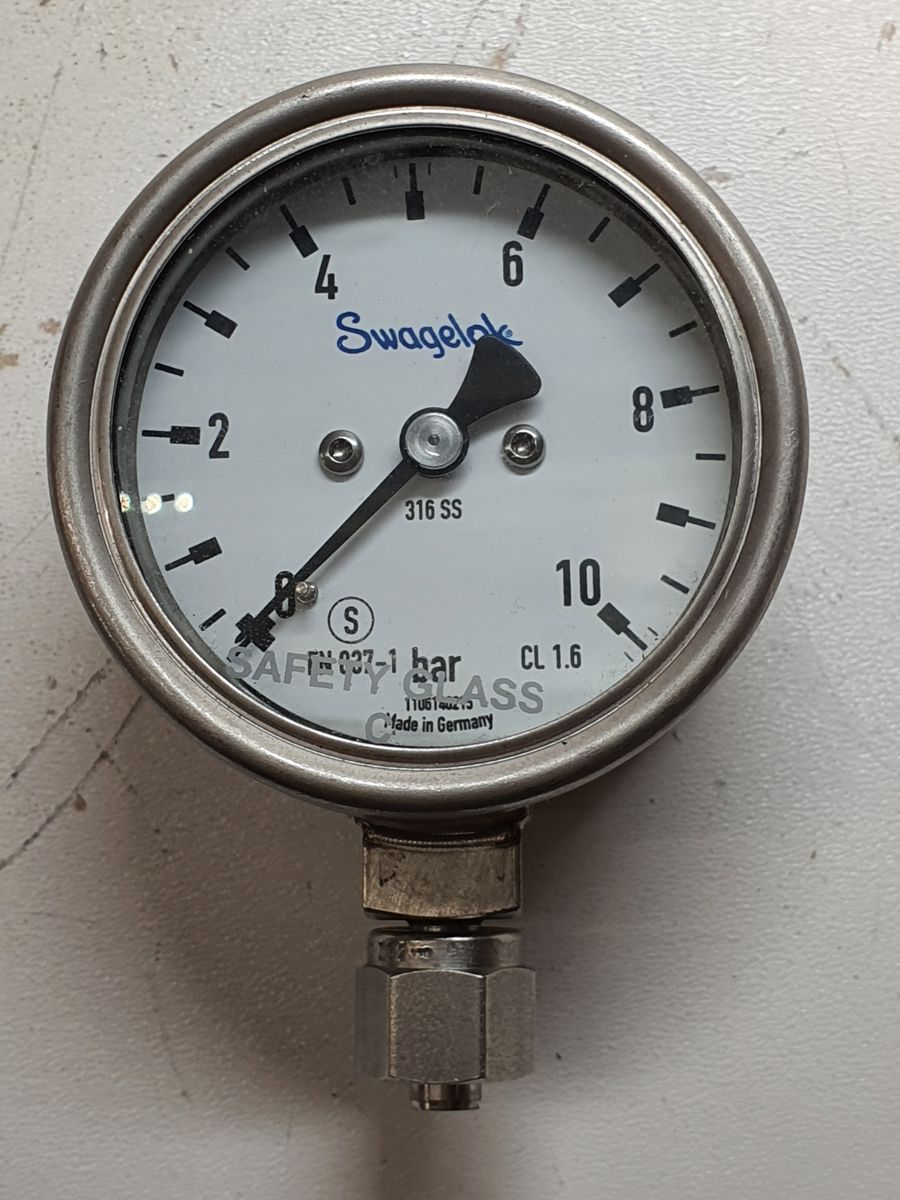

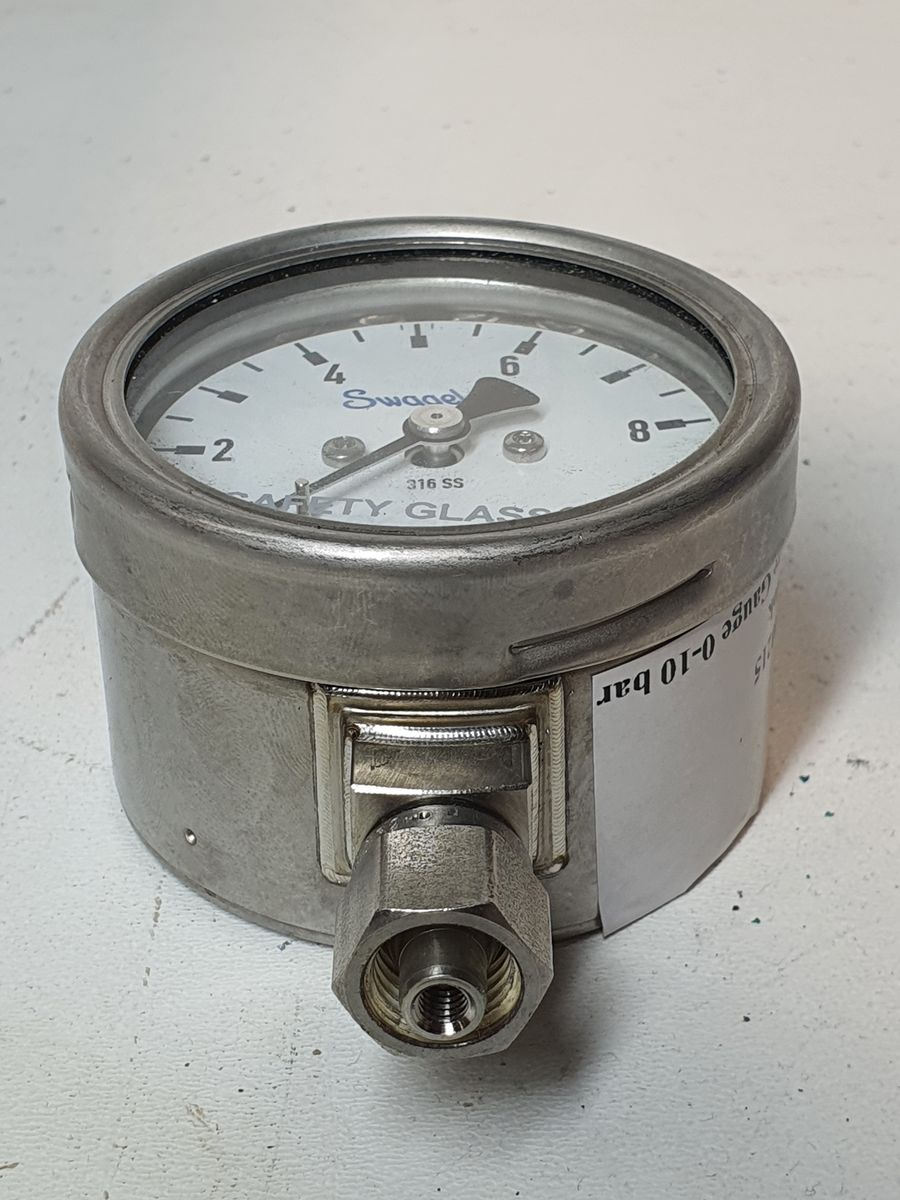

Swagelok PGI Pressure Gauge 0-10 bar 1/4 Tube Fitting Female 63mm

SKU: 96896

Varastossa

24/7 TOIMITUS MAHDOLLINEN

Käytetty
Hankittu työympäristöstä

Hinta pyynnöstä

Käytetty
Hankittu työympäristöstä

Ilman ALV:tä: €45,00 (1 saatavilla)

Sis. alv: €54,45

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Tärkeää: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Takuuajat olosuhteittain

Uusi 12 kuukaudet

Kunnostettu 3 kuukaudet

Käytetty DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

The Swagelok Pressure Gauge 0-10 bar, CL 1.6, 316SS

Parameter	Specification
Standard Compliance	EN 837-1 (EU mechanical pressure gauge standard)
Dial Size	63 mm (2.5 in)
Pressure Range	0–10 bar (0–145 psi)
Accuracy Class	±1.6% of full scale
Case Material	Stainless steel
Wetted Materials	AISI 316 stainless steel
Window	Polycarbonate or tempered glass (variant dependent)
Safety Glass	Type C
Measuring Element	Bourdon tube mechanism
Temperature Range	-20°C to +60°C (configuration dependent)
Vibration Resistance	Optional liquid-filled case
Process Connection	1/4" Tube Fitting
Mounting Type	Lower mount (Code “C”; center back or bottom connection depending on variant)
