Painemittari

Swagelok PGI Pressure Gauge 0-6 bar 1/4 Tube Fitting Female 63mm

SKU: 6026

Varastossa

Käytetty
Hankittu työympäristöstä

Hinta pyynnöstä

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Tärkeää: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Takuuajat olosuhteittain

Uusi 12 kuukaudet

Kunnostettu 3 kuukaudet

Käytetty DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

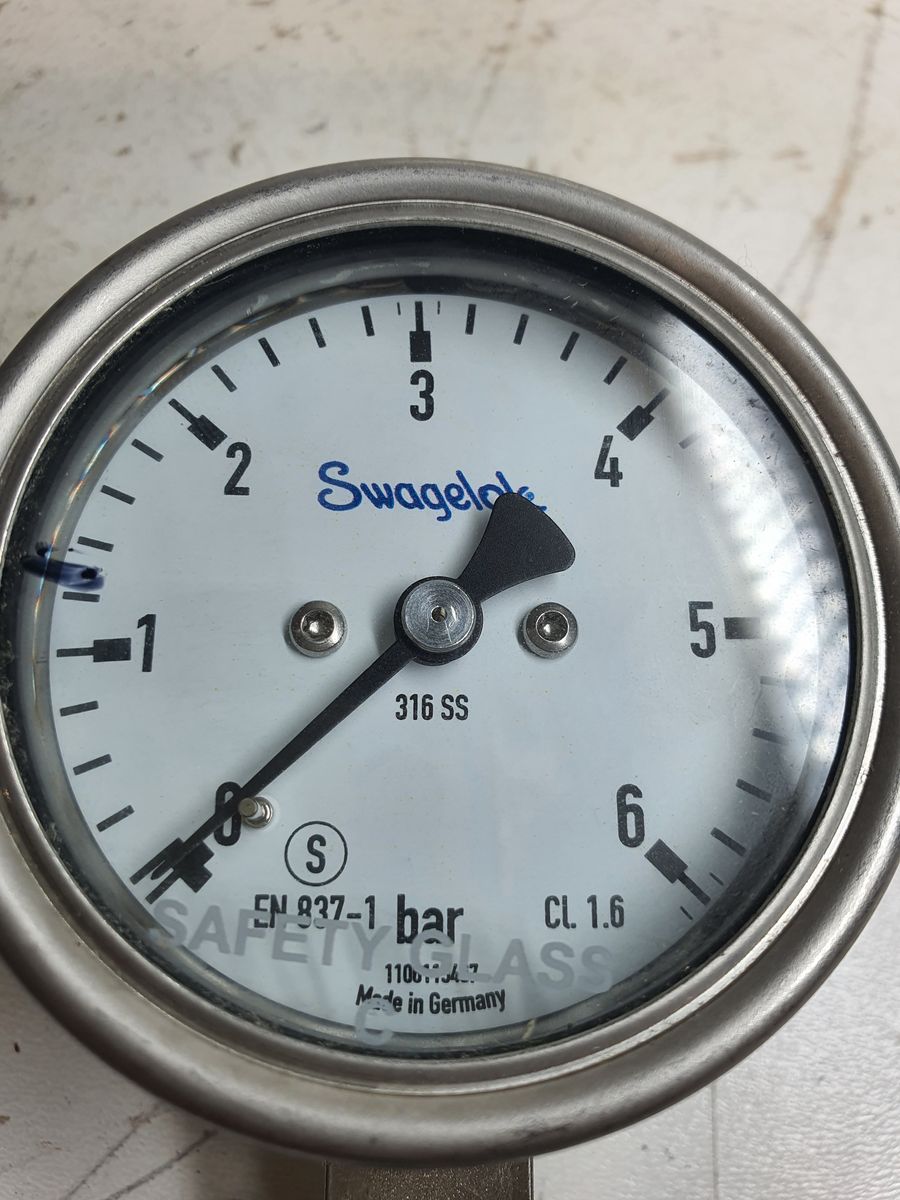

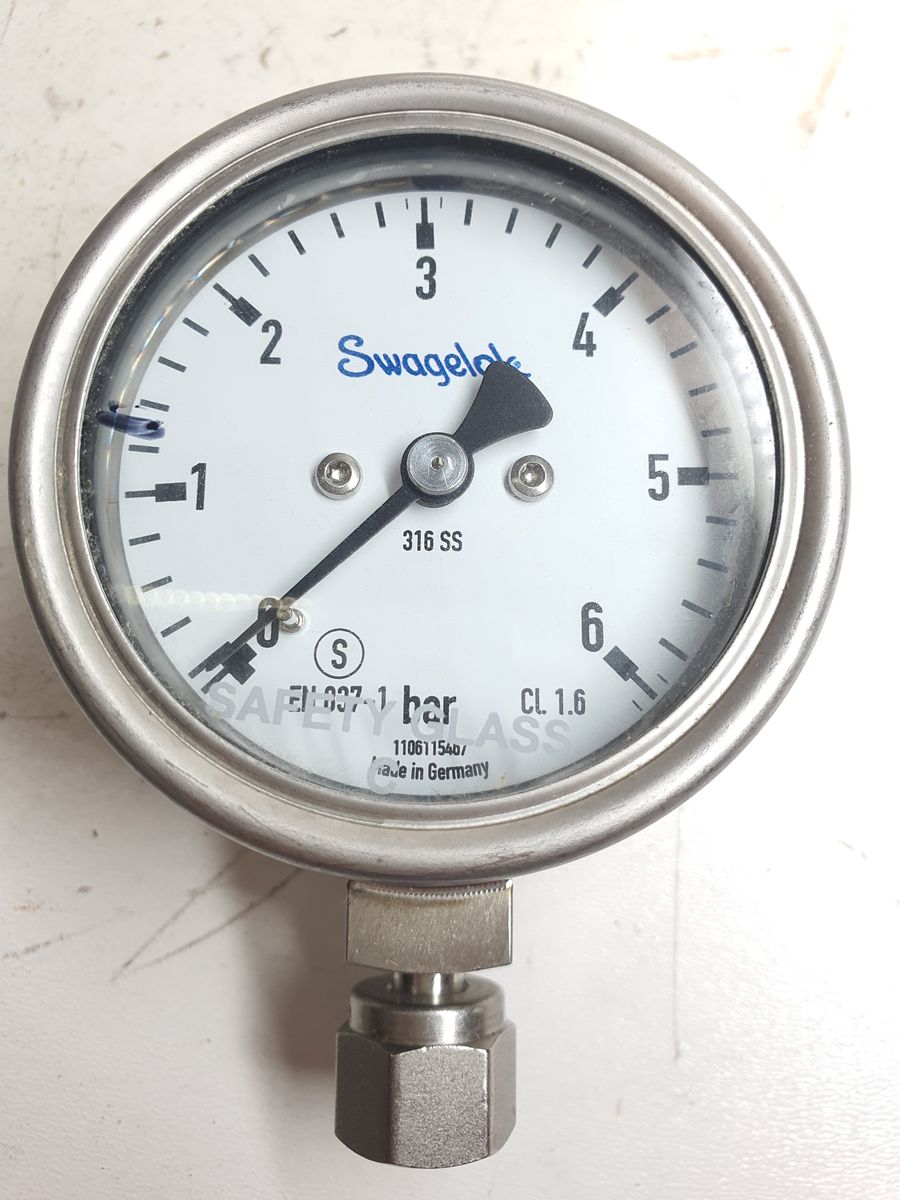

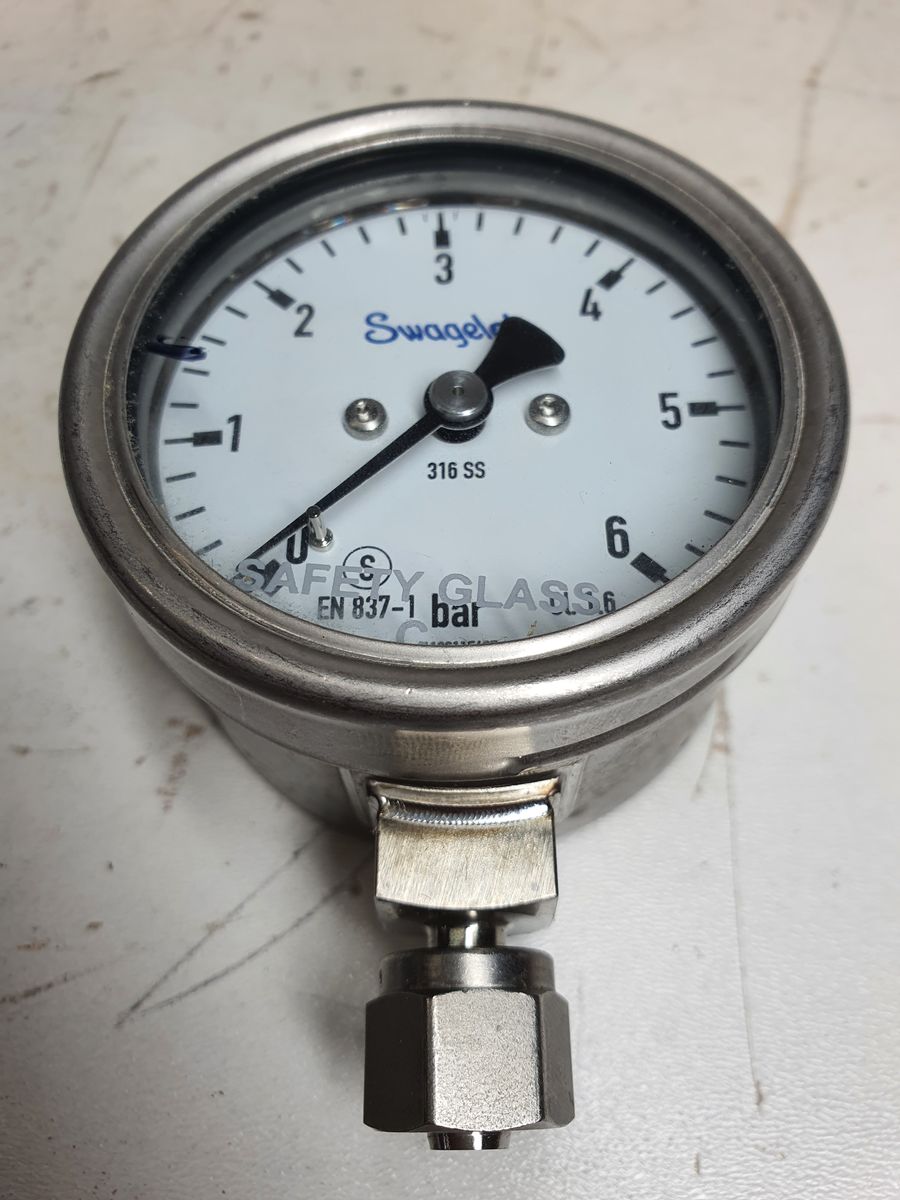

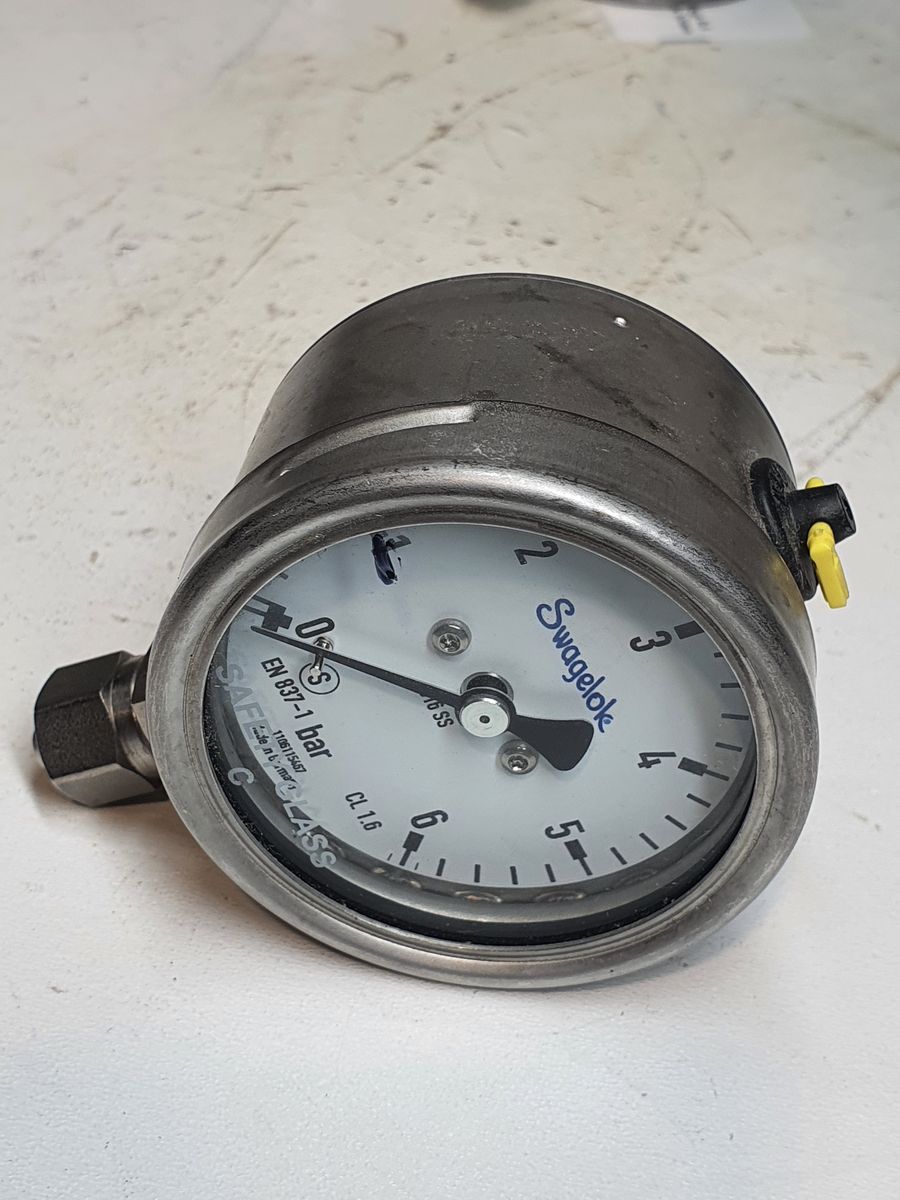

The Swagelok Pressure Gauge 0-6 bar, CL 1.6, 316SS

Specification	Details
Standard Compliance	EN 837-1 (EU mechanical pressure gauge standard)
Dial Size	63 mm (2.5 in)
Pressure Range	0–6 bar
Construction / Case Material	Stainless steel
Wetted Materials	316 stainless steel
Safety Glass Type	Type C
Window	Polycarbonate or tempered glass (variant dependent)
Internals	Bourdon tube mechanism for stable, repeatable measurement
Performance Accuracy	±1.6% of full scale (accuracy class for PGI 63 mm)
Temperature Range	-20°C to +60°C (depends on fill and configuration)
Vibration Resistance	Optional liquid-filled case for enhanced stability

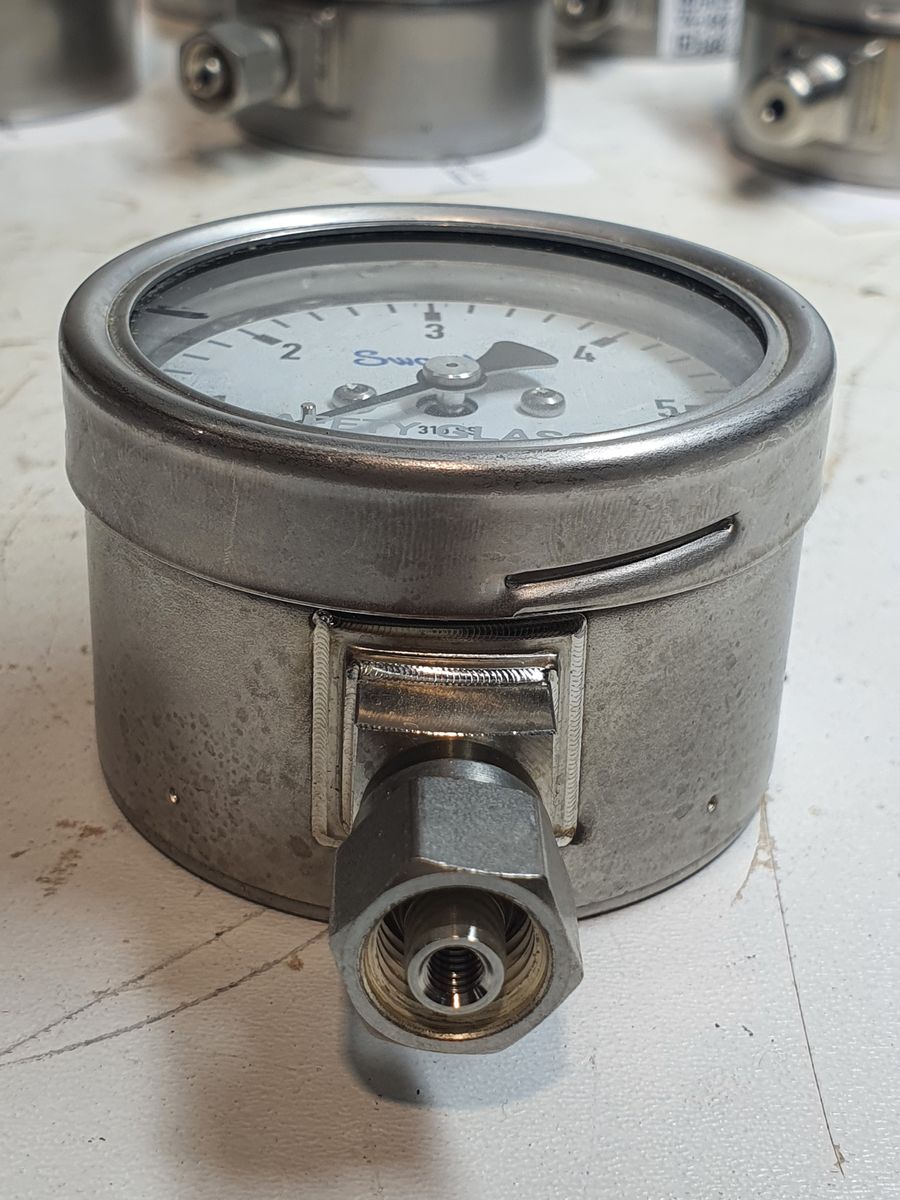

Process Connection	1/4" tube fitting female
Mounting	Lower mount (code “C” = center back or bottom connection, variant dependent)
