Säätimet

Tescom 44-236X-24

SKU: 8012

Varastossa

Käytetty
Hankittu työympäristöstä

Ilman ALV:tä: €100,00 (1 saatavilla)

Sis. alv: €121,00

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Tärkeää: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Takuuajat olosuhteittain

Uusi 12 kuukaudet

Kunnostettu DOA

Käytetty DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

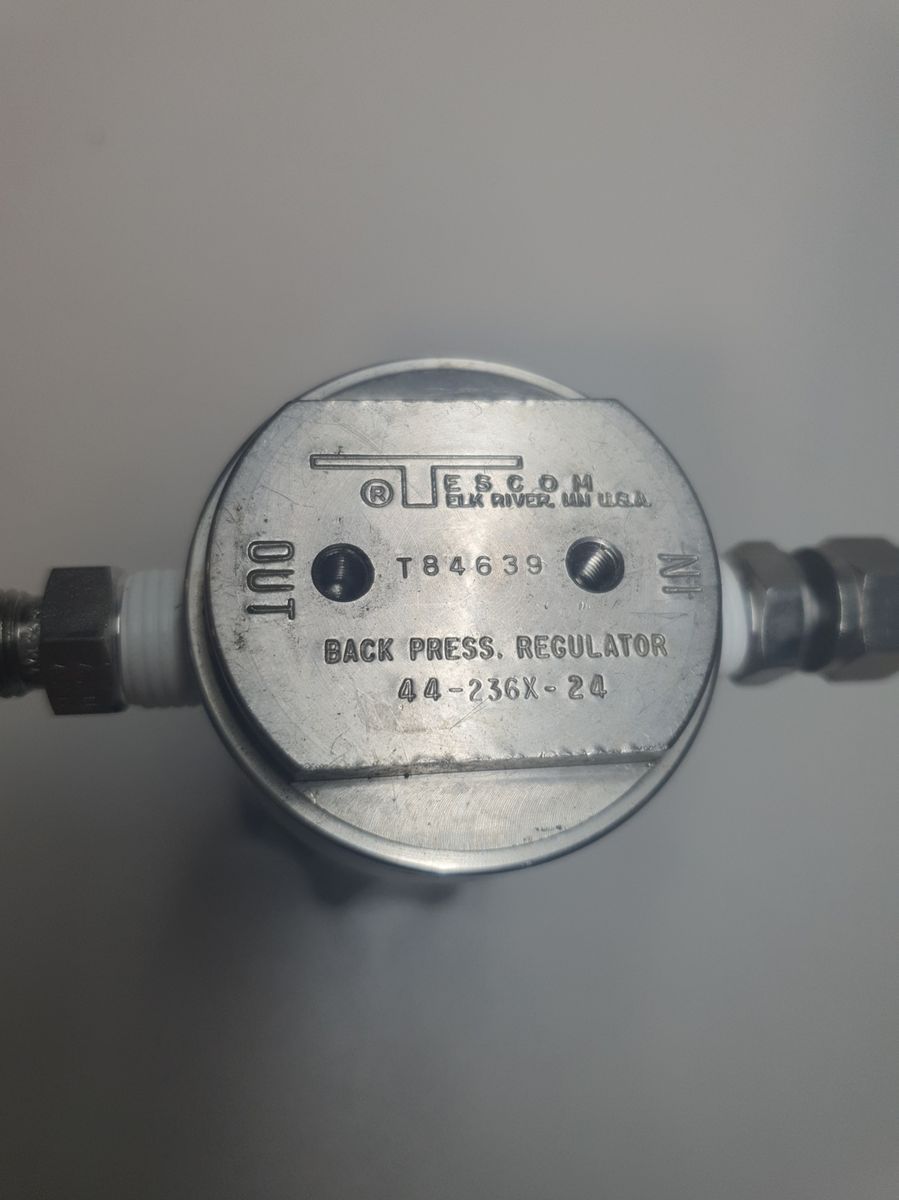

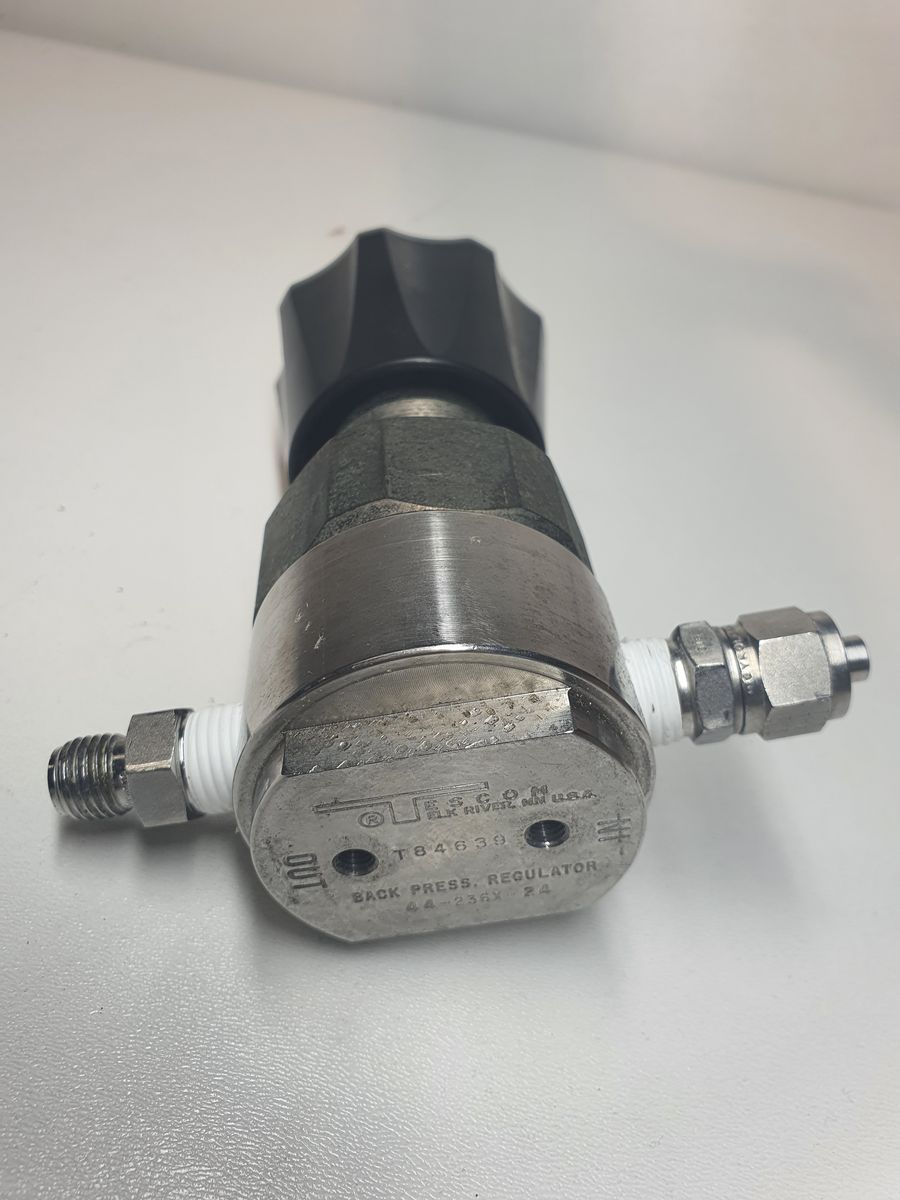

Tescom 44-236X-24 tegendrukregelaar

Category	Parameter
Manufacturer	Tescom (Emerson)
Series	44-2300 Single-Stage Back-Pressure Regulator
Model	44-236X-24
Regulator Type	Single-stage back-pressure regulator
Outlet Pressure Range	0–100 psig (0–6.9 bar)
Flow Coefficient	Cv = 0.08
Port Size / Type	1/4″ NPTF (inlet and outlet)
Design Pressure	150 % of maximum rated pressure
Leakage	Internal: bubble-tightExternal: < 2 × 10⁻⁸ atm cc/sec He
Operating Temperature Range	−40 °F to +140 °F (−40 °C to +60 °C)
Body Material	316 Stainless Steel
Bonnet / Cover Material	316 Stainless Steel
Seat Material	CTFE / PCTFE
Diaphragm Material	316 Stainless Steel or Elgiloy
Weight	~0.9 kg
