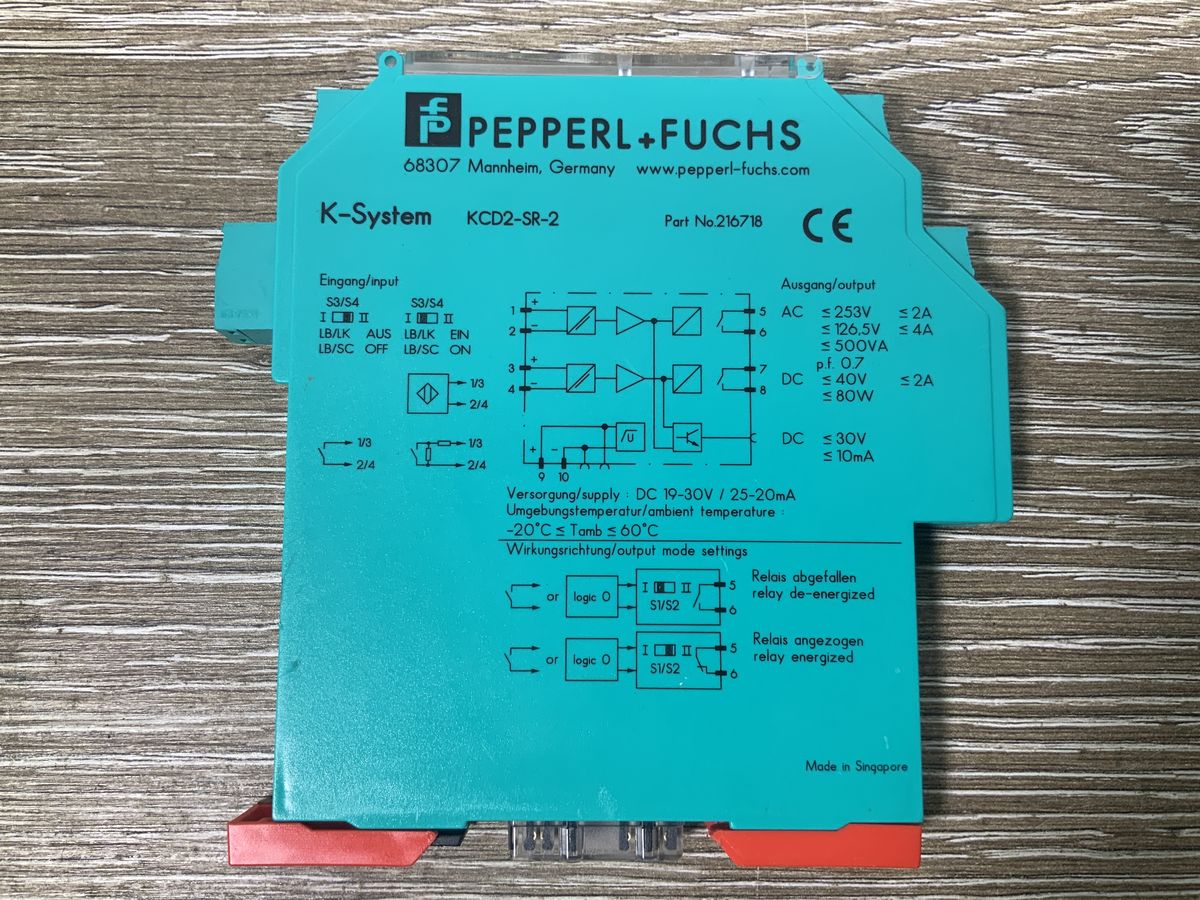

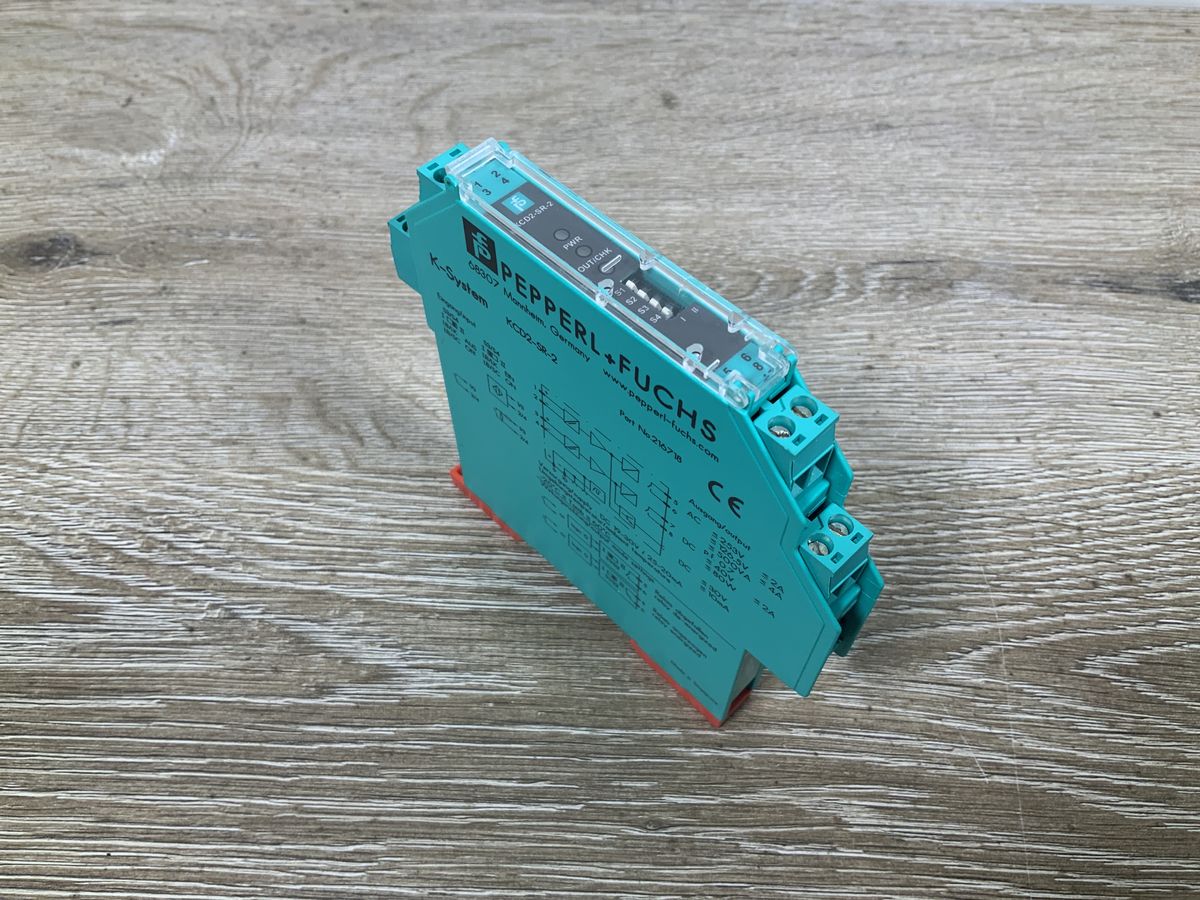

Pepperl+Fuchs KCD2-SR-2
SKU: 52002
Varastossa
Takuu Tiedot
Tärkeää: All warranties are our own warranties and do not cover factory or manufacturer warranties.
The Pepperl+Fuchs KCD2-SR-2 is a 2-channel switch amplifier from the K-System line designed for signal conditioning and isolation. It transfers digital signals from NAMUR sensors or dry contacts to relay outputs. The compact DIN-rail module operates on a 19–30 V DC power supply.
Specifications – KCD2-SR-2
| Parameter | Specification |
|---|---|
| Supply Voltage | 19 - 30 V DC |
| Supply Current | 25 - 20 mA |
| Ambient Temperature Range | -20 °C to +60 °C |
| Max AC Output | 253 V AC / 2 A, 126.5 V AC / 4 A (500 VA) |
| Max DC Output | 40 V DC / 2 A (80 W) |
| Part Number | 216718 |
| Manufacturer | Pepperl+Fuchs (datasheet) |
| Model | KCD2-SR-2 (datasheet) |
| Product Description | Switch Amplifier (2-channel signal conditioner) (datasheet) |
| Rated Supply Voltage | 19 ... 30 V DC (datasheet) |
| Ripple | ≤ 10 % (datasheet) |
| Power Dissipation | ≤ 900 mW (datasheet) |
| Power Consumption | ≤ 900 mW (datasheet) |
| Input Type | Dry contact or NAMUR inputs (datasheet) |
| Output Type | Relay contact output (datasheet) |
| Contact Loading | 250 V AC / 2 A / cos φ > 0.75; 126.5 V AC / 4 A / cos φ > 0.75; 30 V DC / 2 A resistive load (datasheet) |
| Switching Frequency | ≤ 10 Hz (datasheet) |
| Dimensions (W x H x D) | 12.5 x 119 x 114 mm (datasheet) |
| Weight | approx. 100 g (datasheet) |
| Degree of Protection | IP20 (datasheet) |
| Ambient Temperature | -20 ... 60 °C (-4 ... 140 °F) (datasheet) |
| Safety Integrity Level | SIL 2 (SC 3) acc. to IEC/EN 61508 (datasheet) |
×
![]()
